>> Products>> Inductive Proximity Sensors >> AC/DC Metal Face Inductive Sensors

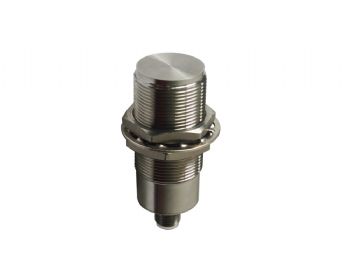

AC/DC Metal Face Inductive Sensors Product Data： ? Stainless steel housing case and active face ? 20-250VAC/DC Operating voltage ? AC/DC output with NO/NC function ? Brown and blue two wire, easy wiring ? M12/M18/M30 available ? IP68 protection degree, perfect for high hygiene industries like food and beverages ? Anti-interference,high shock and vibration resistance ? 2m cable,M12 connector type connections Diameter (mm)  Sensing Distance (mm) Mounting Housing Material Output Function Housing Size Connection 20-250VAC/DC Operating Voltage M12 2 Flush Steel AC NO NC 60mm 68mm 2m Cable M12 Connector 4 Non-Flush M18 5 Flush Steel AC NO NC 55mm 79mm 2m Cable M12 Connector 8 Non-Flush M30 10 Flush Steel AC NO NC 55mm 79mm 2m Cable M12 Connector 15 Non-Flush   Page Up：AC Metal Face Inductive Sensors | Page Down：Corrosion-Resistane Inductive Sensors
