>> Products>> Elevator Overload Sensors >> ELW-01 Elevator Overload Sensor

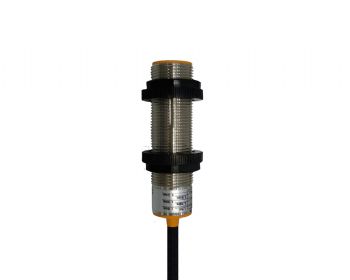

ELW-01 Elevator Overload Sensor Product Data： ? M24x83mm dimension, easy to install and debug ? Detect signal of elevator overload ? Hall type non-contact detect, no mechanical wear ? <1.5% tolerance between 5?...40? temperature ? Elevator Overload Sensor, Economic Solution ? Ultra-high reliability with low price and long life span  Type  ELW-01 Elevator Overload/Weighing Sensor  Size  Ø24x83mm  Housing Material  Nickel plated brass  Sensing Face Material  PBT  Function Indicator  Yellow LED  Application  Applicable to all elevators with moveable car platform in need  of overload signal with a inspection clearance of 8-15mm  Sensitivity  Overload turning point =Rated load adjusting point �0.05mm  System Error  =1.5% (5~40?)  Output Mode  1 pair of relay dynamic CLOSE or dynamic OPEN contacts  respectively with the capacity of DC/AC 48V/500mA  Ambient Temperature  (-25 ~ +55?)  Power Supply  AC/DC 24V( �10%)/15mA.  The operating current of the whole machine =100 mA.  Install Position  Moveable elevator car platform  Accessory  Inductive magnet [20x20x4mm] :1 piece  Fastening Nut: 2 sets  Connection  1m PVC Cable Page Up：The First One | Page Down：ELW-X01 Elevator Overload Sensor
