>> Products>> Elevator Overload Sensors >> ELW-X02 Elevator Overload Sensor

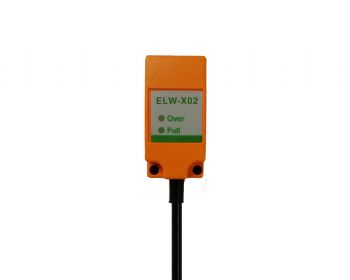

ELW-X02 Elevator Overload Sensor Product Data： ? 30x30x58mm dimension, easy to install and debug ? Full-load and Overload two detection signal output ? Hall type non-contact detect, no mechanical wear ? <1.5% tolerance between +5? ~ +40? temperature ? 24VDC/AC operting voltage,100mA Max. current ? Ultra-high reliability with low price and long life span  Type  ELW-X02 Elevator Overload/Weighing Sensor  Size  30x30x58mm  Housing Material  PBT  Sensing Face Material  PBT  Function Indicator  Yellow LED  Application  Applicable to all elevators with moveable car platform in need  of overload signal with a inspection clearance of 8-15mm  Sensitivity  Overload turning point =Rated load adjusting point �0.05mm  The gap is around 0.5mm between Rated Load and Overeload   System Error  =1.5% (5~40?)  Output Mode  1 pair of relay dynamic CLOSE or dynamic OPEN contacts  respectively with the capacity of DC/AC 48V/500mA  Ambient Temperature  (-25 ~ +55?)  Power Supply  AC/DC 24V( �10%)/15mA.  The operating current of the whole machine =100 mA.  Install Position  Moveable elevator car platform  Accessory  Inductive magnet [20x20x4mm] :1 piece  Fastening Nut: 2 sets  Connection  1m PVC Cable Page Up：ELW-X01 Elevator Overload Sensor | Page Down：SS-WL-AO Elevator Weighing Sensor
