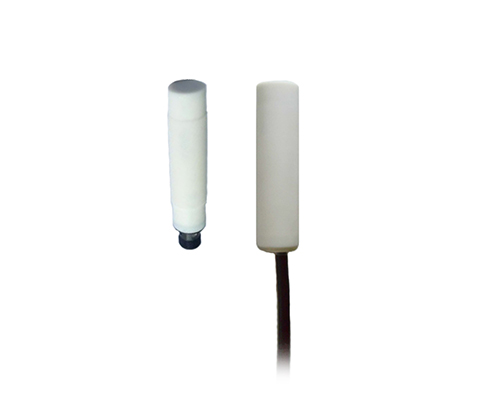

| Corrosion-Resist Capacitive Sensor |
|
|
Product Data：
● Full PTFE Body
● Also Capacitance Sensors
● 10-30VDC Operating voltage
● Liquid, paper,glass and other non-metallic materials can also be detected
● NPN or PNP Output versions and choice between NO or NC
● Sensitivity can be adjusted to meet different customer applications
● High switching frequency, high switching stability
● Nickel plated brass housing case with PBT sensing face
● Up to IP67 protection, anti-shock, anti-dust and waterproof
● With short-circuit protection,overload protection,reverse polarity protection
● Different case sizes are available to meet different application situations
|
Diameter
(mm) |
Sensing Distance
(mm) |
Mounting |
Housing Material |
Output |
Function |
Housing Size |
Connection |
| 10-30VDC Operating Voltage |
| M12 |
1 ... 3 |
Flush |
PTFE |
PNP
NPN |
NO
NC |
M12x42mm
M12x59mm
M12x50mm
M12x68mm |
2m Cable
M12 Connector |
| 2 ... 6 |
Non-Flush |
| M18 |
2 ... 8 |
Flush |
PTFE |
PNP
NPN |
NO
NC |
M18x55mm
M18x80mm
M18x79mm
M18x93mm |
2m Cable
M12 Connector |
| 2 ... 15 |
Non-Flush |
| M30 |
2 ... 20 |
Flush |
PTFE |
PNP
NPN |
NO
NC |
M30x55mm
M30x80mm
M30x79mm
M30x91mm |
2m Cable
M12 Connector |
| 2 ... 30 |
Non-Flush |
|
|
|
| |
