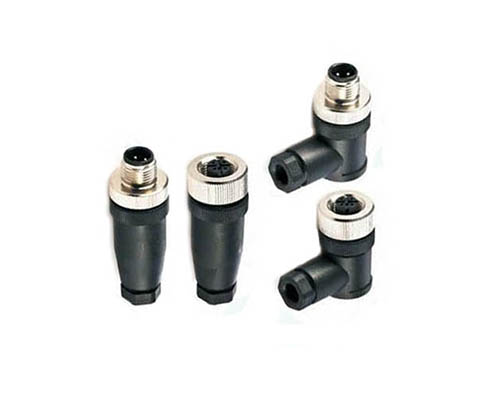

| Field Assembly Sensor Connectors |
|
|
Product Data：
● Field assembly, easy application
● M8 molded connector with 3/4/5/6/8 pins
● M12 molded connector with 3/4/5/8/12 pins
● Male/Female selectable,Straight/Right Angle selectable
● Shielded/Non-Shielded selectable
● A-Code,with LED/ without LED selectable
● Fix screw locking/Snap-in locking
|
Size
(mm) |
Poles |
Coding |
Locking |
Gender |
Insert Degree |
Housing Material |
Shielded |
Protection Degree |
Connection |
Note |
| Field Assembly Sensor Connectors |
| M8 |
3
4
5
6
8 |
A-Code |
Fixed Screw |
Male
Female |
Straight
Right Angle |
PVC |
Non-Shielded |
IP67
IP68 |
PG7
PG9 |
Screw Joint
Soldering Terminal |
| M8 |
3
4 |
A-Code |
Fixed Screw |
Female |
Right Angle |
PVC |
Shielded |
IP67 |
PG7
PG9 |
Screw Joint |
| M12 |
3
4
5
8
12 |
A-Code |
Fixed Screw |
Male
Female |
Straight
Right Angle |
PVC |
Non-Shielded |
IP67
IP68 |
PG7
PG9 |
Screw Joint
Soldering Terminal |
| M12 |
3
4
5 |
B-Code |
Fixed Screw |
Male
Female |
Straight
Right Angle |
PVC |
Non-Shielded |
IP67
IP68 |
PG7
PG9 |
Screw Joint
Soldering Terminal |
| M12 |
3
4
5
6 |
C-Code |
Fixed Screw |
Male
Female |
Straight
Right Angle |
PVC |
Non-Shielded |
IP67
IP68 |
PG7
PG9 |
Screw Joint
Soldering Terminal |
| M12 |
2
3
4
5
6 |
1/2“-20UNF |
Fixed Screw |
Male
Female |
Straight
Right Angle |
PVC |
Shielded
Non-Shielded |
IP67
IP68 |
PG7
PG9 |
|
| M12 |
3
4
5
8 |
A-Code |
Fixed Screw |
Male
Female |
Straight
Right Angle |
PVC |
Shielded |
IP67
IP68 |
PG7
PG9 |
Screw Joint |
|
|
|
| |
|
|
|
|
