| Type |

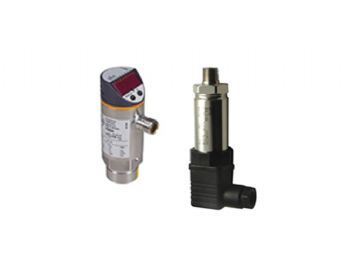

Monosilicon Electronic Pressure Sensor |
| Pressure Types |
Gauge pressure |
| Measuring Range |
0...100MPa |
| Overload Limit |
80% |
| Power Supply Voltage |
12...30VDC |
| Output Signal |
4�20mA,1-5Vdc,RS485,NPN,PNP |
| Accuracy |
0.1%FS |
| Stability Accuracy |
0.1%FS/Year |
| Electric Current |
<60mA |
| Load Resistance |
<(U-12)/0.06O |
| Transmission Distance |
<1000m |
| Power Consumption |
<1.44W |
| Startup After Power Off |
<3s |
| Normal Service After Data Recovery |
<10s |
| Working Temperature |
(-40?�85?) |
| Storage Temperature |
(-40?�85?) |
| Media Temperature |
Silicon oil filling: -40 ~ +120? |
| Ambient Humidity |
0-95%RH @+40? |
| Material |
Steel |
| Isolated Diaphragm Material |
SUS3016L Hastlloy C |
| Isolated Filling Fluid |
Silicon oil, process temperature: -40?...205?
Fluorocarbon oil,process temperature: -45?...160? |
| Sealing |
Stainless steel welding seal |
| Test Standard |
IEC60770 |
| Reference Conditions |
Zero based calibration,Linear output,
Silicon oil filling,316 stainless steel isolated diphragm |
| Power Supply Effects |
<0.005%URL/V |
| Mounting Position Effects |
Apply to any position.
Install error less than 400Pa which can be corrected by PV=0 reset |
| Vibration Effects |
According to IEC61298-3 tests, <0.1%URL |
| Ambient Temperature Effects |
<(0.1+0.15TD)%URL within the range -20�+80 total impact/<(0.1+0.15TD)% |
| Insulation Resistance |
>20MO @100Vdc |
| LED Display Unit |
2-row display: pressure value & unit
3-row display: percentage,pressure value,unit
3-row display: SPn,pressure value,RPn |
| Measuring Menu Set |
URV: Upper range value,20mA
LRV: Lower range value,4mA |
| Alarm Signal |
a) When too small pressure lead to output current display out b) When too large pressure lead to output current >AOHC setting value,
display out>AOHC |
| Measuring Medium |
The fluids which compatible with wetted parts |
| Applicaion Fields |
Pressure Measurement, Level Measurement |
| Protection Degree |
IP67 |
| EMC |
IEC 61000-4, Part 2,3,4,5,6,8 |
| Approvals |
CE,CMC |
| Connection |
M14 Connector |
| Weight |
1000g |
