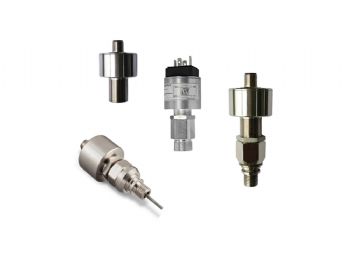

| Hydraulic Valve Position Sensor |
|
|
Product Data：
● ø36mm，ø39mm，ø42mm diameter
● 53mm、60mm、79mm length
● M18x1 connector adaptor
● Mechanical fine tuning to switching point
● Inductive detect, contact-less thus no wear
|
| Type |
Hydraulic Valve Position Sensor |
| Diameter |
ø36mm，ø39mm，ø42mm |
| Main Length |
53mm、60mm、79mm |
| Housing Material |
Nickel plated steel |
| Assured Operating Distance |
0…80% of Sn |
| Hysteresis |
<15% |
| Operating Voltage |
10…30VDC |
| Installation Type |
Flush |
| Peak Voltage |
<10% |
| Repeated Accuracy |
<10% |
| Ripple |
<10% |
| No Load Current |
<10mA |
| Max. Load Current |
400mA |
| Leakage Current |
<0.01mA |
| Voltage Drop |
<2V |
| Switching Frequency |
10Hz |
| Response Time |
0.5ms |
| Rated Insulation Voltage |
75V |
| Ambient Temperature |
(-25 ~ +80℃) |
| Ambient Humidity |
35-95%RH |
| Temperatur Drift |
<10%(Sr) |
| Function Indicator |
LED |
| Electrical Protection |
Short-circuit protection,overload protection,reverse polarity protection |
| Protection Degree |
IP67 |
| Shock Rating |
Shock,half-sinus,30gn,11ms |
| Vibration Rating |
55Hz,1mm ampl., 3x30min. |
| EMC |
IEC 60947-5-2 EN 55501: Class B |
| Connection |
M12 Connector | |
|
|
| |
