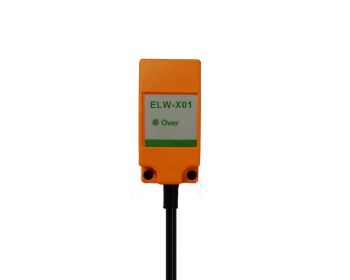

ELW-X01 Elevator Overload Sensor Product Data： ● 30x30x58mm dimension, easy to install and debug ● Detect signal of elevator overload ● Hall type non-contact detect, no mechanical wear thus long life span ● <1.5% tolerance between +5℃ ~ +40℃ temperature ● 24VDC/AC operting voltage,100mA Max. current ● Ultra-high reliability with low price  Type  ELW-X01 Elevator Overload/Weighing Sensor  Size  30x30x58mm  Housing Material  PBT  Sensing Face Material  PBT  Function Indicator  Yellow LED  Application  Applicable to all elevators with moveable car platform in need  of overload signal with a inspection clearance of 8-15mm  Sensitivity  Overload turning point ≤Rated load adjusting point ±0.05mm  System Error  ≤1.5% (5~40℃)  Output Mode  1 pair of relay dynamic CLOSE or dynamic OPEN contacts  respectively with the capacity of DC/AC 48V/500mA  Ambient Temperature  (-25 ~ +55℃)  Power Supply  AC/DC 24V( ±10%)/15mA.  The operating current of the whole machine ≤100 mA.  Install Position  Moveable elevator car platform  Accessory  Inductive magnet [20x20x4mm] :1 piece  Fastening Nut: 2 sets  Connection  1m PVC Cable Page Up：ELW-01 Elevator Overload Sensor | Page Down：ELW-X02 Elevator Overload Sensor
