>> Products>> Elevator Overload Sensors >> SS-WL-AO Elevator Weighing Sensor

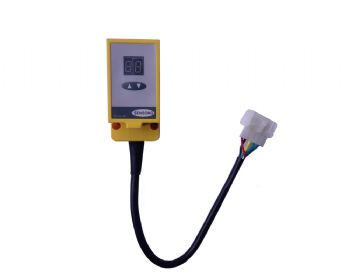

SS-WL-AO Elevator Weighing Sensor Product Data： ● 45x45x90mm dimension, easy to install and debug ● Intelligent detect signals of No Load,Light load, Half load,Heavy load and Overload ● Hall type non-contact detect, no mechanical wear ● <1.5% tolerance between +5℃ ~ +40℃ temperature ● 24VDC/AC operting voltage,150mA Max. current ● Ultra-high reliability with low price and long life span  Type  SS-WL-AO Elevator Overload/Weighing Sensor  Size  45x45x90mm  Housing Material  PBT  Sensing Face Material  PBT  Function Indicator  Yellow LED  Application  Applicable to all moveable car platform elevator,with an auto inspection range of  (2mm  Sensitivity  Elevator rated load/200(with the rated load of 1T, it is 5KG)   System Error  ≤1.5% (+5~+40℃), ≤3.0% (-20~+55℃)  Output Mode  Solid state relay & Programmable universal signal:  a) 3-channel programmable output signals are NO LOAD,LIGHT LOAD，    HALF LOAD,HEAVY LOAD,OVERLOAD(customer may set the changing range freely)  b) Each channel can be programmed as dynamic CLOSE or OPEN contact  c) Contact capacity: DC/AC 32V/15mA  Ambient Temperature  (-20 ~ +55℃)  Power Supply  AC/DC 24V( ±10%)/150mA  Install Position  Moveable elevator car platform  Accessory  Inductive magnet [20x20x4mm] :1 piece  Fastening Nut: 2 sets  Connection  1m PVC Cable Page Up：ELW-X02 Elevator Overload Sensor | Page Down：The Last One
