>> Products>> Inductive Proximity Sensors >> Namur Inductive Proximity Sensor

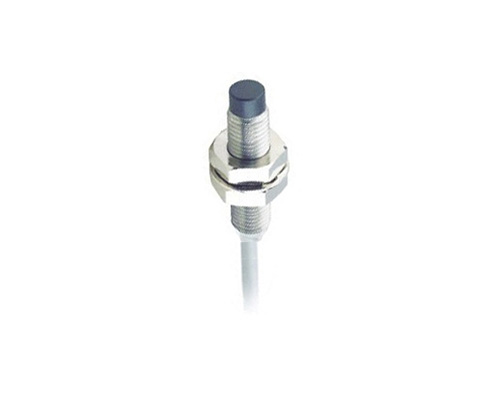

Namur Inductive Proximity Sensor Product Data： ? Namur sensor,for applications in hazardous areas ? For connection to intrinsically safe circuits ? Particularly short housing for use where space is restricted ? Very high switching frequency ? Robust metal housing for use in harsh industrial environments ? IP67 Protection, Anti-dust and anti-water Diameter (mm)  Sensing Distance (mm) Mounting Housing Material Output Housing Size Connection 6-12VDC Operating Voltage ?4 0.6 0.8 Flush Steel Namur ?4x8mm ?4x20mm 2m Cable M5 0.6 0.8 Flush Steel Namur M5x20mm M5x28mm 2m Cable ?6.5 0.8 1 Flush Steel Namur ?6.5x25mm 2m Cable 1 2 Non-Flush M8 1 Flush Steel Namur M8x30mm 2m Cable 2 Non-Flush M12 2 Flush Steel Namur M12x25mm 2m Cable 4 Non-Flush M18 5 Flush Steel Namur M18x30mm 2m Cable 8 Non-Flush   Page Up：Ring Inductive Proximity Sensors | Page Down：Magnetic Hall Sensors
