>> Products>> Inductive Proximity Sensors >> DC Ultra-Mini Inductive Sensors

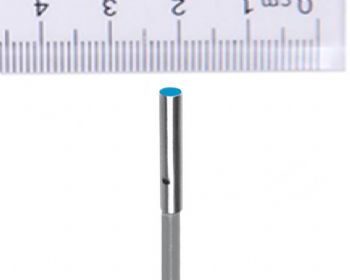

DC Ultra-Mini Inductive Sensors Product Data： ● Ø3mm,Ø4mm,M4mm,M5mm Diameter ● 10-30VDC Operating Voltage ● 2KHz switching frequency and 0.1ms response time ● Shielded installation against shock or damage ● EMC protection and built-in electrical protections ● IP67 Protection, Anti-dust and anti-water Diameter (mm) Sensing Distance (mm) Mounting Housing Material Output Function Housing Size (mm) Connection Ф3 0.6mm Flush Steel PNP NPN NO NC Ф3x25mm 2m Cable M8 Pigtail M4 0.6mm Flush Steel PNP NPN NO NC M4x25mm 2m Cable M8 Pigtail Ф4 0.8mm 1mm 1.5mm Flush Steel PNP NPN NO NC Ф4x25mm 2m Cable M8 Pigtail M5 0.8mm 1mm 1.5mm Flush Steel PNP NPN NO NC M5x25mm M5x40mm 2m Cable M8 Pigtail M8 Connector 5x5 0.8mm 1mm 1.5mm Flush Brass PNP NPN NO NC 5x5x25mm 2m Cable M8 Pigtail Page Up：The First One | Page Down：DC Mini-Shorter Inductive Sensors
