>> Products>> Inductive Proximity Sensors >> DC Mini-Shorter Inductive Sensors

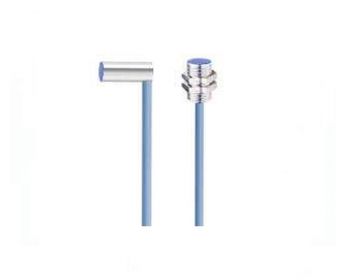

DC Mini-Shorter Inductive Sensors Product Data： ●   6.5mm,Ø8mm,M8mm,M12mm,8x8mm Diameter ●   10-30VDC Operating Voltage ●   Only 18mm sensor length, nearly no installation space limit ●   Shielded installation against shock or damage ●   EMC protection and electrical protections ●   IP67 Protection, Anti-dust and anti-water Diameter (mm)  Sensing Distance (mm) Mounting Housing Material Output Function Housing Size (mm) Connection 10-30VDC Operating Voltage Ф6.5 1mm 2mm 3mm Flush Steel PNP NPN NO NC Ф6.5x18mm Ф6.5x32mm 2m Cable M8 Connector M8 Pigtail M8 1mm 2mm 3mm Flush Steel PNP NPN NO NC M8x18mm M8x32mm 2m Cable M8 Connector M8 Pigtail Ф8 1mm 2mm 3mm Flush Steel PNP NPN NO NC Ф8x18mm Ф8x32mm 2m Cable M8 Connector M8 Pigtail 8x8 1mm 2mm 3mm Flush Brass PNP NPN NO NC 8x8x18mm 8x8x28mm 2m Cable M8 Connector M8 Pigtail M12 2mm 4mm 6mm Flush Brass PNP NPN NO NC M12x22mm M12x45mm 2m Cable M8 Connector M8 Pigtail   Page Up：DC Ultra-Mini Inductive Sensors | Page Down：DC Standard Inductive Sensors
