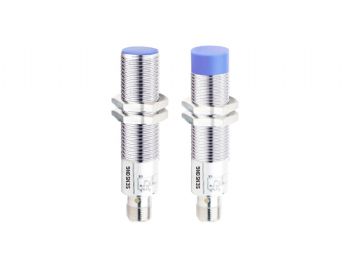

| AC Inductive Proximity Sensors |
|
|
Product Data：
● 20-250VAC wide operating voltage range
● Brown and blue two wire, easy wiring
● Different sizes and installation type, meet different customer needs
● Wide operating temperature range, High work reliability
● IP67 high protection rating for the requirements of harsh industrial environments
|
Diameter
(mm) |
Sensing Distance
(mm) |
Mounting |
Housing Material |
Output |
Function |
Housing Size |
Connection |
| 20-250VAC Operating Voltage |
| M12 |
2 |
Flush |
Brass
PBT Resin |
AC |
NO
NC |
M12x60mm
M12x68mm |
2m Cable
M12 Connector |
| 4 |
Non-Flush |
| M18 |
5 |
Flush |
Brass
PBT Resin |
AC |
NO
NC |
M18x40mm
M18x45mm
M18x55mm
M18x48mm
M18x53mm
M18x79mm |
2m Cable
M12 Connector |
| 8 |
Non-Flush |
| M30 |
10 |
Flush |
Brass
PBT Resin |
AC |
NO
NC |
M30x40mm
M30x45mm
M30x80mm
M30x48mm
M30x53mm
M30x78mm |
2m Cable
M12 Connector |
| 15 |
Non-Flush |
| Ф34 |
15 |
Flush |
PBT Resin |
AC |
NO
NC |
34x82mm
34x93mm |
2m Cable
M12 Connector |
| 20 |
Non-Flush |
| Q40x40 |
15 |
Flush |
PBT Resin |
AC |
NO
NC |
40x40x118mm
40x40x65mm |
2m Cable
PG Connector |
| 25 |
Non-Flush |
|
|
|
| |
|
|
|
|
