>> Products>> Inductive Proximity Sensors >> AC/DC Inductive Proximity Sensors

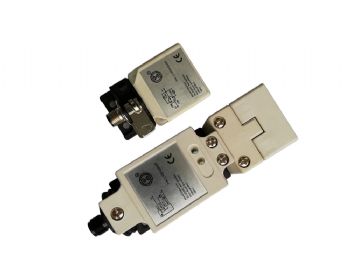

AC/DC Inductive Proximity Sensors Product Data： ● 20-250VAC/DC wide operating voltage range ● Brown and blue two wire, easy wiring ● Wide operating temperature range，High work reliability ● Different round and rectangular housings，meet different customer needs ● IP67 high protection rating for the requirements of harsh industrial environments ● Versions with connectors, terminals or connection cable, meet different customer needs Diameter (mm)  Sensing Distance (mm) Mounting Housing Case Output Function Housing Size Connection 20-250VAC/DC Operating Voltage M12 2 Flush Brass PBT Resin AC/DC NO NC M12x60mm M12x68mm 2m Cable M12 Connector 4 Non-Flush M18 5 Flush Brass PBT Resin AC/DC NO NC M18x55mm M18x79mm 2m Cable M12 Connector 8 Non-Flush M30 10 Flush Brass PBT Resin AC/DC NO NC M30x80mm M30x78mm 2m Cable M12 Connector 15 Non-Flush Ф34 15 Flush PBT Resin AC/DC NO NC Ф34x82mm Ф34x93mm 2m Cable M12 Connector 20 Non-Flush Q40x40 15 Flush PBT Resin AC/DC NO NC Q40x40x118mm Q40x40x65mm M12 Connector PG Connector 25 Non-Flush   Page Up：AC Inductive Proximity Sensors | Page Down：Mini Cubic Inductive Proximity Sensors
