>> Products>> Inductive Proximity Sensors >> Mini Cubic Inductive Proximity Sensors

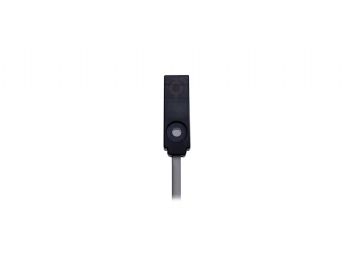

Mini Cubic Inductive Proximity Sensors Product Data： ● Wide range of selections in a supercompact size ● Built-in amplifier, low current consumption ● Wide operating temperature range, High work reliability ● IP67 high protection rating for the requirements of harsh industrial environments Diameter (mm)  Sensing Distance (mm) Mounting Housing Material Output Function Housing Size Connection 3 Wire, 10-30VDC Operating Voltage 6 1.2 Non-Flush Polycarbonate PNP NPN   NO NC 6x19mm 2m Cable 8 1.5 Non-Flush Polycarbonate PNP NPN   NO NC 8x20mm 2m Cable 10 2 Non-Flush Polycarbonate PNP NPN   NO NC 6x27mm 2m Cable 12 3 Non-Flush Polycarbonate PNP NPN   NO NC 7x27mm 2m Cable 15 4 Non-Flush Polycarbonate PNP NPN   NO NC 8x32mm 15x32mm 2m Cable 2-Wire，10-30VDC Operating Voltage 6 1.2 Non-Flush Polycarbonate 2-Wire NO NC 6x19mm 2m Cable 8 1.5 Non-Flush Polycarbonate 2-Wire NO NC 8x20mm 2m Cable 10 2 Non-Flush Polycarbonate 2-Wire NO NC 6x27mm 2m Cable 12 3 Non-Flush Polycarbonate 2-Wire NO NC 7x27mm 2m Cable 15 4 Non-Flush Polycarbonate 2-Wire NO NC 8x32mm 15x32mm 2m Cable   Page Up：AC/DC Inductive Proximity Sensors | Page Down：Ring Inductive Proximity Sensors
