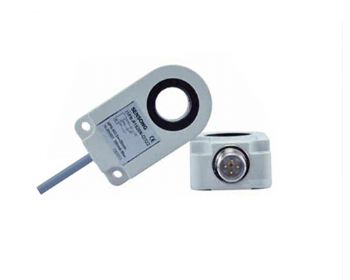

Ring Inductive Proximity Sensors
Product Data:
● Ring Sensors body, Static and dynamic versions
● 10-30VDC operating voltage
● Very short response time
● Different inner sizes versions to meet different customer needs
● Wide operating temperature range,High work reliability
● Choice between normally closed and normally open
● Reliable detection of objects with very small diameters
● IP67 high protection rating for the requirements of harsh industrial environments


Inner Diameter
(mm)
Sensing Distance
(mm)
Mounting Housing Material Output Function Housing Size Connection

Static Version and Dynamic Version

10-30VDC Operatingg Voltage

6 20 Non-Flush PBT PNP
NPN
NO
NC
NO+NC
35x60x20mm 2m Cable
M12 Connector
10 20 Non-Flush PBT PNP
NPN
NO
NC
NO+NC
35x60x20mm 2m Cable
M12 Connector
15 20 Non-Flush PBT PNP
NPN
NO
NC
NO+NC
35x60x20mm 2m Cable
M12 Connector
21 20 Non-Flush PBT PNP
NPN
NO
NC
NO+NC
35x60x20mm 2m Cable
M12 Connector



|
