>> Products>> Inductive Proximity Sensors >> Namur Inductive Proximity Sensor

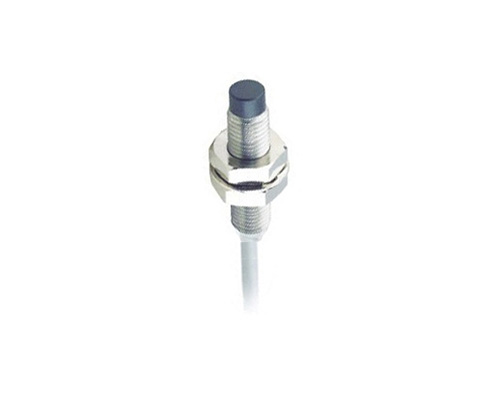

Namur Inductive Proximity Sensor Product Data： ● Namur sensor,for applications in hazardous areas ● For connection to intrinsically safe circuits ● Particularly short housing for use where space is restricted ● Very high switching frequency ● Robust metal housing for use in harsh industrial environments ● IP67 Protection, Anti-dust and anti-water Diameter (mm)  Sensing Distance (mm) Mounting Housing Material Output Housing Size Connection 6-12VDC Operating Voltage Ф4 0.6 0.8 Flush Steel Namur Ф4x8mm Ф4x20mm 2m Cable M5 0.6 0.8 Flush Steel Namur M5x20mm M5x28mm 2m Cable Ф6.5 0.8 1 Flush Steel Namur Ф6.5x25mm 2m Cable 1 2 Non-Flush M8 1 Flush Steel Namur M8x30mm 2m Cable 2 Non-Flush M12 2 Flush Steel Namur M12x25mm 2m Cable 4 Non-Flush M18 5 Flush Steel Namur M18x30mm 2m Cable 8 Non-Flush   Page Up：Ring Inductive Proximity Sensors | Page Down：Magnetic Hall Sensors
