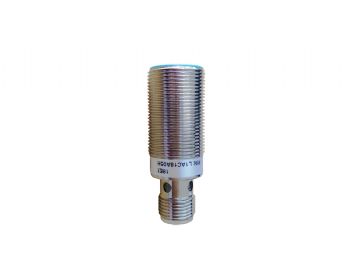

Magnetic Hall Sensors
Product Data:
● Unipolar hall sensor and Omnipolar hall sensor
● Up to 10mm Sensing Distance
● High response frequency,high repeatability accuracy
● Built-in electrical protections like polarity protection, overload protection,short-circuit protection
● Steel case,can work in harsh environments such as oil, dust, vibration and temperature difference


Diameter
(mm)
Sensing Distance
(mm)
Mounting Housing Material Output Function Housing Size Connection
10-30V Operating Voltage
Ф4 5 Flush Steel NPN
PNP
NO
NC
Ф4x25mm 2m Cable
M8 Pigtail
M5 5 Flush Steel NPN
PNP
NO
NC
M5x28mm 2m Cable
M8 Pigtail
Ф6.5 10 Flush Steel NPN
PNP
NO
NC
Ф6.5x30mm
Ф6.5x45mm
Ф6.5x53mm

2m Cable

M8 Connector

M12 Connector

M8 10 Flush Steel NPN
PNP
NO
NC
M8x30mm
M8x45mm
M8x53mm

2m Cable

M8 Connector

M12 Connector

M12 10 Flush Steel NPN
PNP
NO
NC
M12x30mm
M12x50mm
M12x68mm

2m Cable

M8 Connector

M12 Connector



|
