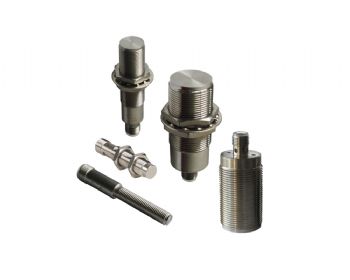

| DC Metal Face Inductive Sensors |
|
|
Product Data：
● Stainless steel housing case and active face
● 10-30VDC Operating Voltage
● M8/M12/M18/M30 available to meet different applications
● Designed for heavy duty, more resistant to shock,oil, corrosion
● IP68 protection degree, perfect for high hygiene industries like food and beverages
● Anti-interference,high shock and vibration resistance
● Stainless steel housing case and active face for heavy duty, more resistant to shock,oil,corrosion
● With short-circuit protection,reverse polarity protection and overload protection
|
Diameter
(mm) |
Sensing Distance
(mm) |
Mounting |
Housing Material |
Function |
Output |
Housing Size |
Connection |
| 10-30VDC Operating Voltage |
| M8 |
1
2
3 |
Flush |
Steel |
PNP
NPN |
NO
NC |
M8x30mm
M8x45mm
M8x45mm
M8x60mm
M8x53mm
M8x70mm |
2m Cable
M8 Connector
M12 Connector |
2
4 |
Non-Flush |
| M12 |
2
4
6 |
Flush |
Steel |
PNP
NPN |
NO
NC |
M12x30mm
M12x50mm
M12x50mm
M12x68mm |
2m Cable
M12 Connector |
4
8
10 |
Non-Flush |
| M18 |
5
8
12 |
Flush |
Steel |
PNP
NPN |
NO
NC |
M18x35mm
M18x40mm
M18x55mm
M18x48mm
M18x53mm
M18x79mm |
2m Cable
M12 Connector |
8
16
20 |
Non-Flush |
| M30 |
10
15
22 |
Flush |
Steel |
PNP
NPN |
NO
NC
NO+NC |
M30x35mm
M30x40mm
M30x55mm
M30x48mm
M30x53mm
M30x79mm |
2m Cable
M12 Connector |
15
25
40 |
Non-Flush |
|
|
|
| |
|
|
|
|
