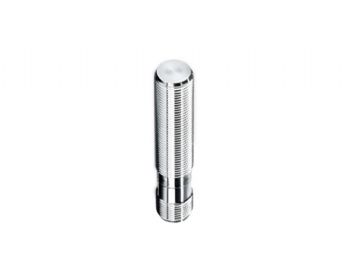

DC 2-Wire Metal Face Inductive Sensors
Product Data:
● 2-Wire Output
● Stainless steel housing case and active face
● 10-60VDC Operating Voltage
● Brown and blue two wire, easy wiring
● M8/M12/M18/M30 available to meet different applications
● Designed for heavy duty, more resistant to shock,oil, corrosion
● IP68 protection degree, perfect for high hygiene industries like food and beverages
● Anti-interference,high shock and vibration resistance
● 2m cable,M8 connector,M12 connector type connections
● With short-circuit protection,reverse polarity protection and overload protection


Diameter
(mm)
Sensing Distance
(mm)
Mounting Housing Material Function Output Housing Size Connection
10-60VDC Operating Voltage
M8 1 Flush Steel 2-Wire NO
NC
M8x30mm
M8x45mm

M8x45mm
M8x60mm

M8x53mm
M8x70mm
2m Cable
M8 Connector
M12 Connector
2 Non-Flush
M12 2 Flush Steel 2-Wire NO
NC
M12x30mm
M12x50mm

M12x50mm
M12x68mm
2m Cable
M12 Connector
4 Non-Flush
M18 5 Flush Steel 2-Wire NO
NC
M18x35mm
M18x40mm
M18x55mm

M18x48mm
M18x53mm
M18x79mm
2m Cable
M12 Connector
8 Non-Flush
M30 10 Flush Steel 2-Wire NO
NC
M30x40mm
M30x45mm
M30x55mm

M30x48mm
M30x53mm
M30x79mm
2m Cable
M12 Connector
15 Non-Flush



|
