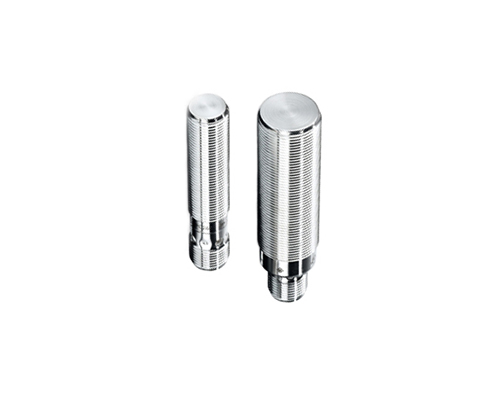

| Selective Detection Metal Face Sensors |
|
|
Product Data：
● Ferrous Only Sensing
● Non-ferrous Only Sensing
● 10-30VDC Operating voltage,M12/M18/M30 available
● Stainless steel housing case and active face for heavy duty,more resistant to shock,oil,corrosion
● IP68 protection degree, perfect for high hygiene industries like food and beverages
● Anti-interference,high shock and vibration resistance
● With short-circuit protection,reverse polarity protection and overload protection
● 2m cable,M12 connector type connections
|
Diameter
(mm) |
Sensing Distance
(mm) |
Mounting |
Housing Material |
Function |
Output |
Housing Size |
Connection |
| 10-30VDC Operating Voltage |
| M12 |
2 |
Flush |
Steel |
PNP
NPN
|
NO
NC |
M12x30mm
M12x50mm
M12x50mm
M12x68mm |
2m Cable
M12 Connector |
| 4 |
Non-Flush |
| M18 |
5 |
Flush |
Steel |
PNP
NPN |
NO
NC |
M18x35mm
M18x40mm
M18x55mm
M18x48mm
M18x53mm
M18x79mm |
2m Cable
M12 Connector |
| 8 |
Non-Flush |
| M30 |
10 |
Flush |
Steel |
PNP
NPN |
NO
NC |
M30x40mm
M30x45mm
M30x55mm
M30x48mm
M30x53mm
M30x79mm |
2m Cable
M12 Connector |
| 15 |
Non-Flush |
|
|
|
| |
|
|
|
|
