>> Products>> Inductive Proximity Sensors >> AC Metal Face Inductive Sensors

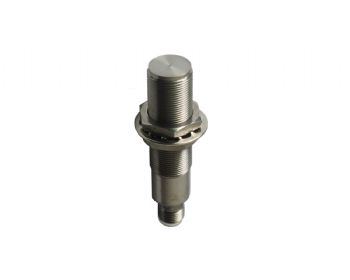

AC Metal Face Inductive Sensors Product Data： ● Stainless steel housing case and active face ● 20-250VAC Operating voltage ● Brown and blue two wire, easy wiring ● M12/M18/M30 available ● IP68 protection degree, perfect for high hygiene industries like food and beverages ● Anti-interference,high shock and vibration resistance ● 2m cable,M12 connector type connections Diameter (mm)  Sensing Distance (mm) Mounting Housing Material Output Function Housing Size Connection 20-250V Operating Voltage M12 2 Flush Steel AC NO NC M12x60mm M12x68mm 2m Cable M12 Connector 4 Non-Flush M18 5 Flush Steel AC NO NC M18x55mm M18x79mm 2m Cable M12 Connector 8 Non-Flush M30 10 Flush Steel AC NO NC M30x55mm M30x79mm 2m Cable M12 Connector 15 Non-Flush   Page Up：Selective Detection Metal Face Sensors | Page Down：AC/DC Metal Face Inductive Sensors
