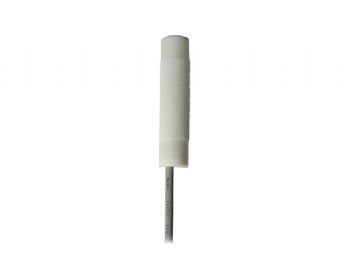

| Corrosion-Resistane Inductive Sensors |
|
|
Product Data：
● Full PTFE Housing Case,
● Good acid and caustic corrosion resistance,
● Waterproof and oil-proof
● 10-30VDC Operating voltage,M12/M18/M30 available
● IP68 protection degree, perfect for high hygiene industries like food and beverages
● Anti-interference,high shock and vibration resistance
● With short-circuit protection,reverse polarity protection and overload protection
● Wide operating temperature range,High work reliability
|
Diameter
(mm) |
Sensing Distance
(mm) |
Mounting |
Housing Material |
Output |
Function |
Housing Size |
Connection |
| 10-30VDC Operating Voltage |
| M12 |
2
4
6 |
Flush |
PTFE |
PNP
NPN |
NO
NC
NO+NC |
M12x50mm
M12x68mm |
2m Cable
M12 Connector |
4
8
10 |
Non-Flush |
| M18 |
5
8
12 |
Flush |
PTFE |
PNP
NPN |
NO
NC
NO+NC |
M18x55mm
M18x79mm |
2m Cable
M12 Connector |
8
12
20 |
Non-Flush |
| Ф18 |
5
8
12 |
Flush |
PTFE |
PNP
NPN |
NO
NC
NO+NC |
Ф18x70mm
Ф18x83mm |
2m Cable
M12 Connector |
8
12
20 |
Non-Flush |
| M30 |
10
16
22 |
Flush |
PTFE |
PNP
NPN |
NO
NC
NO+NC |
M30x55mm
M30x78mm |
2m Cable
M12 Connector |
15
25
40 |
Non-Flush |
|
|
|
| |
|
|
|
|
