>> Products>> Inductive Proximity Sensors >> Analog Output Inductive Sensors

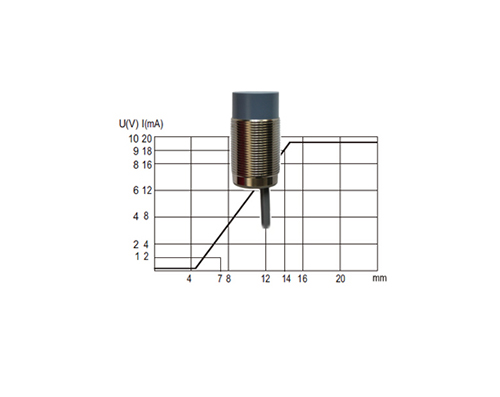

Analog Output Inductive Sensors Product Data： ● Analog Output Inductive Sensor ● 4-20mA current output/0-10VDC output available ● 18-30VDC Operating voltage,M8/M12/M18/M30 etc. ● Anti-interference,high shock and vibration resistance ● Nickel plated brass housing case with IP67 Protection ● Strong shock resistance and vibration resistance ● Wide operating temperature range,high repeat accuracy Diameter (mm)  Sensing Distance (mm) Mounting Housing Materail Output Function Housing Size Connection 18-30VDC Operating Voltage M8 0.1-1.5 Flush Nickel Plated Brass PNP-Analog 4-20mA Current 0-10V Voltage Current+Voltage M8x45mm M8x68mm 2m Cable M8 Connector 0.1-2.5 Non-Flush M12 0.1-3.0 2.0-6.0 Flush Nickel Plated Brass PNP-Analog 4-20mA Current 0-10V Voltage Current+Voltage M12x60mm M12x68mm 2m Cable M12 Connector 0.1-4.0 Non-Flush M18 1.0-4.0 6.0-12.0 Flush Nickel Plated Brass PNP-Analog 4-20mA Current 0-10V Voltage Current+Voltage M18x80mm M18x91mm 2m Cable M12 Connector 1.0-7.0 Non-Flush M30 5.0-10.0 Flush Nickel Plated Brass PNP-Analog 4-20mA Current 0-10V Voltage Current+Voltage M30x80mm M30x91mm 2m Cable M12 Connector 7.0-14.0 Non-Flush Q40x40 6.0-15.0 Flush PBT Resin PNP-Analog 4-20mA Current 0-10V Voltage Current+Voltage 40x40x80mm 40x40x91mm PG Connector M12 Connector 7.0-20.0 Non-Flush   Page Up：Corrosion-Resistane Inductive Sensors | Page Down：Weild Field Immune Sensors
