>> Products>> Inductive Proximity Sensors >> Weild Field Immune Sensors

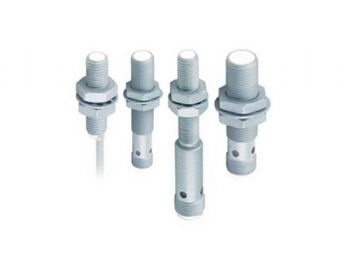

Weild Field Immune Sensors Product Data： ● PTFE coated stainless steel housing case ● PTFE sensing face,resistant to weld splatter ● Special coil structure,protected against electromagnetic interference ● 10-30VDC，20-250VAC，20-250AC/DC three type Operating voltage ● M8/M12/M18/M30 etc., large variety of different types ● High switching frequency and high uptime ● EMC protection and electrical protections ● IP67 Protection, Anti-dust and anti-water Diameter (mm)  Sensing Distance (mm) Mounting Housing Material Output Function Housing Size Connection 10-30VDC Operating Voltage M8 1 Flush PTFE Coated Steel Case PTFE Sensing Face PNP NPN NO NC M8x30mm M8x45mm M8x45mm M8x60mm M8x53mm M8x70mm   2m Cable M8 Connector M12 Connector 2 Non-Flush M12 2 Flush PTFE Coated Steel Case PTFE Sensing Face PNP NPN NO NC M12x30mm M12x50mm M12x50mm M12x68mm 2m Cable M12 Connector 4 Non-Flush M18 5 Flush PTFE Coated Steel Case PTFE Sensing Face PNP NPN NO NC M18x35mm M18x40mm M18x55mm M18x48mm M18x53mm M18x79mm 2m Cable M12 Connector 8 Non-Flush M30 10 Flush PTFE Coated Steel Case PTFE Sensing Face PNP NPN NO NC M30x35mm M30x40mm M30x55mm M30x48mm M30x53mm M30x79mm 2m Cable M12 Connector 15 Non-Flush 20-250VAC Operating Voltage M12 2 Flush PTFE Coated Steel Case PTFE Sensing Face AC NO NC M12x60mm M12x68mm 2m Cable M12 Connector 4 Non-Flush M18 5 Flush PTFE Coated Steel Case PTFE Sensing Face AC NO NC M18x55mm M18x79mm 2m Cable M12 Connector 8 Non-Flush M30 10 Flush PTFE Coated Steel Case PTFE Sensing Face AC NO NC M30x80mm M30x78mm 2m Cable M12 Connector 15 Non-Flush 20-250VAC/DC Operating Voltage M12 2 Flush PTFE Coated Steel Case PTFE Sensing Face AC/DC NO NC M12x60mm M12x68mm 2m Cable M12 Connector 4 Non-Flush M18 5 Flush PTFE Coated Steel Case PTFE Sensing Face AC/DC NO NC M18x55mm M18x79mm 2m Cable M12 Connector 8 Non-Flush M30 10 Flush PTFE Coated Steel Case PTFE Sensing Face AC/DC NO NC M30x80mm M30x78mm 2m Cable M12 Connector 15 Non-Flush   Page Up：Analog Output Inductive Sensors | Page Down：Pressure Resistant Inductive Sensors
