>> Products>> Capacitive Proximity Sensors >> DC Capacitive Proximity Sensor

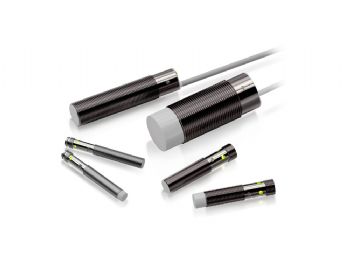

DC Capacitive Proximity Sensor Product Data： ● Also Capacitance Sensors ● 10-30VDC Operating voltage ● Liquid, paper,glass and other non-metallic materials can also be detected ● NPN or PNP Output versions and choice between NO or NC ● Sensitivity can be adjusted to meet different customer applications ● High switching frequency, high switching stability ● Nickel plated brass housing case with PBT sensing face ● Up to IP67 protection, anti-shock, anti-dust and waterproof ● With short-circuit protection,overload protection,reverse polarity protection ● Different case sizes are available to meet different application situations Diameter (mm)  Sensing Distance (mm) Mounting Housing Material Output Function Housing Size Connection 10-30VDC Operating Voltage Ф6.5 1 Flush Nickel plated brass PBT Resin PNP NPN NO NC Ф6.5x30mm Ф6.5x45mm Ф6.5x45mm Ф6.5x60mm Ф6.5x53mm Ф6.5x70mm 2m Cable M8 Connector M12 Connector 2 Non-Flush M8 1 Flush Nickel plated brass PBT Resin PNP NPN NO NC M8x30mm M8x45mm M8x45mm M8x60mm M8x53mm M8x70mm 2m Cable M8 Connector M12 Connector 2 Non-Flush M12 1 ... 3 Flush Nickel plated brass PBT Resin PNP NPN NO NC M12x42mm M12x59mm M12x50mm M12x68mm 2m Cable M12 Connector 2 ... 6 Non-Flush M18 2 ... 8 Flush Nickel plated brass PBT Resin PNP NPN NO NC M18x55mm M18x80mm M18x79mm M18x93mm 2m Cable M12 Connector 2 ... 15 Non-Flush M30 2 ... 20 Flush Nickel plated brass PBT Resin PNP NPN NO NC M30x55mm M30x80mm M30x79mm M30x91mm 2m Cable M12 Connector 2 ... 30 Non-Flush Ф34 2 ... 25 Flush PBT Resin PNP NPN NO NC Ф34x82mm Ф34x93mm 2m Cable M12 Connector 2 ... 35 Non-Flush Q80x80 2 ... 40 Flush ABS Resin PNP NPN NO NC 80x80x40mm PG Connector 2 ... 50 Non-Flush   Page Up：The First One | Page Down：AC Capacitive Proximity Sensors
