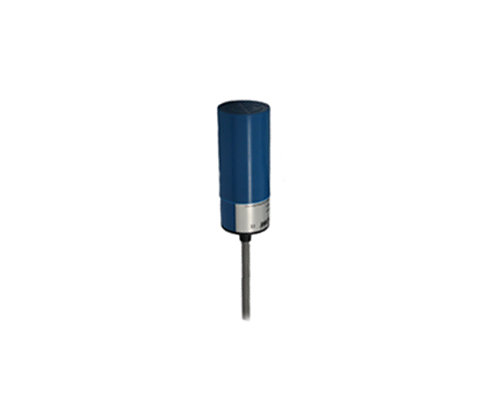

| AC Capacitive Proximity Sensors |
|
|
Product Data：
● Also name Capacitance Sensors
● 20-250VAC Operating Voltage
● Liquid, paper,glass and other non-metallic materials can also be detected
● Output function between NO or NC
● Sensitivity can be adjusted to meet different customer applications
● High switching frequency, high switching stability
● Nickel plated brass housing case with PBT sensing face,
● Up to IP67 protection, anti-shock, anti-dust and waterproof
● With short-circuit protection,overload protection,reverse polarity protection
● Different case sizes are available to meet different application situations
|
Diameter
(mm) |
Sensing Distance
(mm) |
Mounting |
Housing Material |
Output |
Function |
Housing Size |
Connection |
| 20-250VAC Operating Voltage |
| M18 |
2 ... 8 |
Flush |
Nickel Plated Brass
PBT Resin |
AC |
NO
NC |
M18x80mm
M18x93mm |
2m Cable
M12 Connector |
| 2 ... 15 |
Non-Flush |
| M30 |
2 ... 20 |
Flush |
Nickel Plated Brass
PBT Resin |
AC |
NO
NC |
M30x80mm
M30x93mm |
2m Cable
M12 Connector |
| 2 ... 30 |
Non-Flush |
| Ф34 |
2 ... 25 |
Flush |
PBT Resin |
AC |
NO
NC |
Ф34x82mm
Ф34x93mm |
2m Cable
M12 Connector |
| 2 ... 35 |
Non-Flush |
|
|
|
| |
|
|
|
|
