>> Products>> Photoelectic Sensors >> Rectangular Photoelectric Sensors

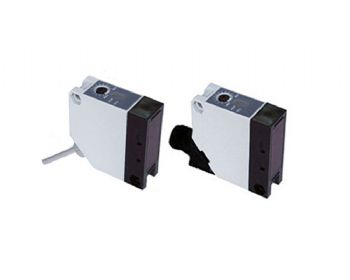

Rectangular Photoelectric Sensors Product Data： ● 10-30VDC operating voltage ● 12-24VD/24-240VAC operating voltage ● Infrared light with diffuse,retro-reflective,through-beam sensing mode ● 31x20x12mm，50x50x18mm，81x65x25mm plastic housing case ● IP65 Protection,waterproof and anti-dust ● Adjustable sensing distance to meet customers different needs. ● Built-in electrical protections Diameter (mm)  Sensing Distance Sensing Mode Housing Material Output Function Housing Size Connection 10-30VDC Operating Voltage Q31 5m 15m Through-Beam ABS Resin PNP NPN NO NC NO+NC   Q31x20x12mm 2m Cable M8 Connector 110mm 350mm 800mm Diffuse 4m Retro-Reflective Q50 20m 40m Through-Beam ABS Resin PNP/NPN NO/NC Q50x50x18mm 2m Cable M12 Connector 0.4m 1m 1.8m 2m Diffuse 1500mm Retro-Reflective Q80 25m 50m Through-Beam ABS Resin PNP/NPN NO/NC Q80x80x25mm 2m Cable PG Connector 1m 1.8m Diffuse 15m Retro-Reflective 12-24VDC/24-240VAC Operating Voltage Q50 20m 40m Through-Beam ABS Resin Relay NO/NC Q50x50x18mm 2m Cable M12 Connector 0.4m 1m 1.8m 2m Diffuse 1500mm Retro-Reflective Q80 25m 50m Through-Beam ABS Resin Relay NO/NC Q80x80x25mm 2m Cable PG Connector 1m 1.8m Diffuse 15m Retro-Reflective   Page Up：Cylinderial Photoelectric Sensors | Page Down：Laser Sensor
