>> Products>> Photoelectic Sensors >> Laser Sensor

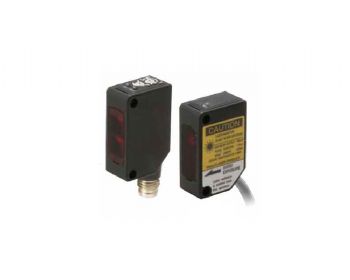

Laser Sensor Product Data： ● 31x20x11mm compact size Laser Sensors ● 10-30VDC operating voltage ● Diffuse,retro-reflective,through-beam,BGS sensing mode ● ABS housing case with IP67 Protection,waterproof and anti-dust ● Sensitivity Adjustable by potentiometer  ● NPN/PNP-NO/NC function to meet different customers needs ● With short-circuit /reverse polarity/overload protection  Type  Laser Sensor  Diameter  31x20x11mm  Operating Voltage  10-30VDC  Switching Distance  400mm /Diffuse  30m /Throug-beam  10m /Polarized Retro-reflective  300mm /BGS)  Output  NPN-NO/NC  PNP-NO/NC  Rated Voltage  24VDC  Rated Insulation Voltage  75DC  Ripple  <10%  Response Time  250us  Light Source  650nm laser  Laser Class  Class-1 / Class-2  Output Indicator  Yellow LED  Power Indicator  Green LED  Sensitivity Adjustment  Yes  Protection Category  IP67  Operating Temperature  +-10℃…50℃  Storage Temperature  -25℃-+70℃  Operating Humidity  35%...95%RH  Short circuit protection  Yes  Reverse polarity protection  Yes  Overload Protection  Yes  Vibration  10-55HZ,width=1.5mm  Shock  50G(500m/s)  Housing Material  ABS  Sensing Surface Material  PMMA  Connection  2m PVC cable/M8 Connector  Weight  42/35g Page Up：Rectangular Photoelectric Sensors | Page Down：The Last One
